744760315A
Manufacturer:
Wurth Electronics
Mfr.Part #:
744760315A
Datasheet:
Description:

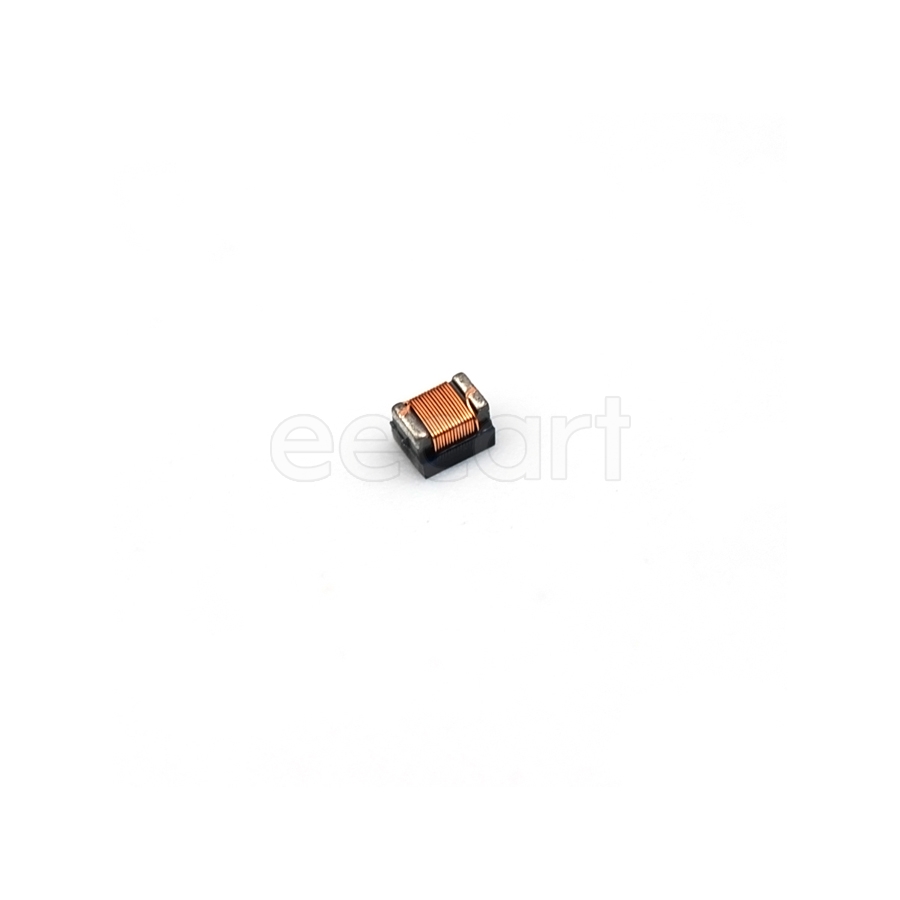

Fixed Inductors 0805(2012 Metric) SMD/SMT 1.5 µH 5 % 130 mA 2.9 Ω
| Parameter | Value |
|---|---|
| Tolerance | 5 % |
| Height - Seated (Max) | 1.48 mm |
| Length | 2.286 mm |
| Width | 1.25 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Case Code (Imperial) | 0805 |
| Case Code (Metric) | 2012 |
| Composition(Kit Type) | Wirewound |
| Height | 1.2 mm |
| Packaging | Reel |
| Lead Free | Lead Free |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Weight | 32.006612 mg |
| Self Resonant Frequency | 200 MHz |
| Q Factor | 15 |
| Current Rating | 130 mA |
| DC Resistance (DCR) | 2.9 Ω |
| Test Frequency | 7.96 MHz |
| Shielding | Unshielded |
| Inductance | 1.5 µH |
| Core Material | Ferrite |
| inductance tolerance | 5 % |
| Max DC Current | 130 mA |
| Saturation Current | 130 mA |
| Type | Wirewound |
Stock: 1269
Distributors
pcbx
pcbxUnit Price$0.29431
Ext.Price$0.29431
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.29431 | $0.29431 |
| 10 | $0.28152 | $2.81520 |
| 25 | $0.27166 | $6.79150 |
| 50 | $0.26215 | $13.10750 |
| 100 | $0.24275 | $24.27500 |
| 300 | $0.23285 | $69.85500 |
| 500 | $0.22336 | $111.68000 |
| 1000 | $0.20459 | $204.59000 |
